final presentation !!

final models

 1:10 detail model of operable wall/drawer track system.
[side on view with one wall removed - tracks run inside the grooves at the top of each drawer]

1:10 detail model of operable wall showing drawers pulled out

[drawers slide along tracks and can be extended or retracted]

1:100 model

[southern elevation]

1:100 model
[northern elevation]

construction of operative detail model

construction of 1:100 model

1:100 cardboard model with trellis indicated

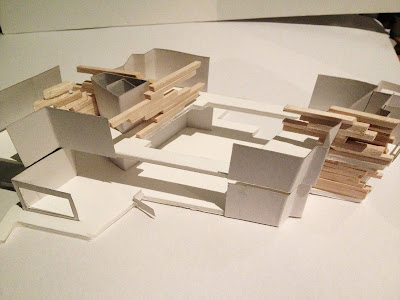

1:100 foam core model with balsa wood indicating the operable walls within the building

sectional and plan diagrams

operable drawer/wall system can be pulled out to provide more (smaller) spaces

the operable wall can be retracted to create a double height space for aerial skills

the operable walls (50cm each in height) can be moved in segments, depending on the desirable space, increasing functionality

this sectional diagram and the plans below show how the life drawing rooms have the potential to be extended out to create a double height space for aerial skills

top floor life drawing rooms retracted

life drawing rooms extended out to provide double height space for aerial skills
